description
| Size | 4.3‘’ |
| External Size | 174.6x93.6 |
A.A.(mm)W*H | 96.04x54.86 |
Controller | GT911 |
| Transmittance | ≥86% |
Surface hardness | 6H |
Operating Temperature | -20℃^70℃，≤90% RH |
Interface | I2C |
Structure | G+G SITO |
Other size we have
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size | External Size | A.A.(mm)W*H | Controller | Transmittance | Surface hardness | Operating Temperature | Interface | Structure |
| 0.9‘’ | 18.7x31.9 | 10.8x21.7 | FT3267 | ≥86% | 6H | -20℃^70℃，≤90% RH | I2C | G+F |
| 1.2‘’ | φ50.5 | φ31 | FT3268 | ≥86% | 6H | -20℃^70℃，≤90% RH | I2C | G+F |
| 3.5‘’ | 85.3x109.8 | 49.56x74.04 | GT1151Q | ≥86% | 6H | -20℃^70℃，≤90% RH | I2C | G+F+F |
4.3‘’ | 174.6x93.6 | 96.04x54.86 | GT911 | ≥86% | 6H | -20℃^70℃，≤90% RH | I2C | G+G SITO |
| 5.6‘’ | 137x92.1 | 110x67 | FT7511 | ≥86% | 6H | -20℃^70℃，≤90% RH | I2C | G+F+F |
| 7‘’ | 180.59x119.1 | 154.48x86.32 | FT7511 | ≥86% | 6H | -20℃^70℃，≤90% RH | I2C | G+G DITO |
| 7‘’ | 235x117.7 | 152.4x95.7 | ILI2511 | ≥86% | 6H | -20℃^70℃，≤90% RH | USB+I2C | G+F+F |
| 10.1‘’ | 257x169 | 222.72x125.28 | GT928 | ≥86% | 6H | -20℃^70℃，≤90% RH | I2C | G+F+F |
| 10.4‘’ | 179.8x230.4 | 160.4x213.2 | ILI2511 | ≥86% | 6H | -20℃^70℃，≤90% RH | I2C | G+G DITO |
| 15‘’ | 273.06x358.6 | 229.1x305.1 | WDT8752 | ≥86% | 6H | -20℃^70℃，≤90% RH | USB | G+G DITO |
| 15.6‘’ | 390x254 | 345.16x194.59 | ILI2511 | ≥86% | 6H | -20℃^70℃，≤90% RH | USB | G+F+F |
| 21.5'' | 508.1x303.18 | 476.64x268 | WDT8761 | ≥86% | 6H | -20℃^70℃，≤90% RH | USB | G+F+F |
-

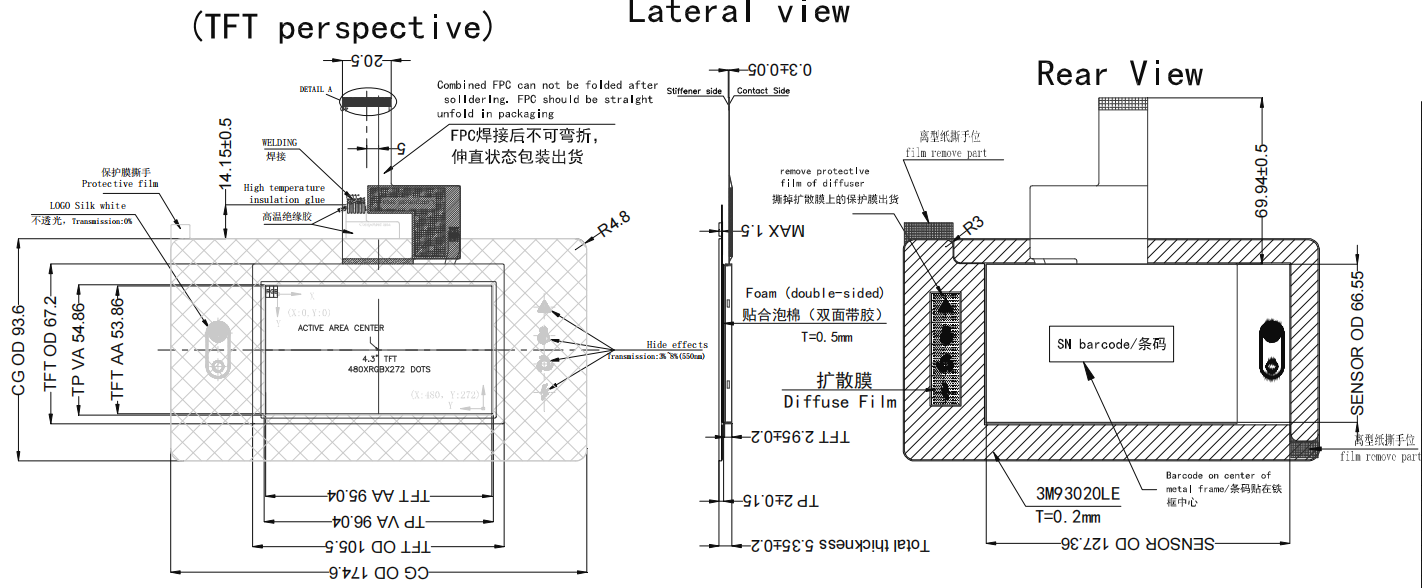

TIAN-G04303-02 specification
