description
| Size | 4.3'' |
| Resolution | 480*272 |
A.A.(mm)W*H | 95.04*53.68 |
Luminance(cd/m2) | 400cd/m2 |
| Interface | 24bit RGB |
Operating Temperature(°C) | -20℃~+70℃ |
Other size we have
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size | Resolution | A.A.(mm) W*H | Luminance (cd/m2) | Interface | Operating Temperature(°C) |
| 1.44'' | 128*128 | 25.50*26.50 | 200cd/m2 | 8bit MCU | -20℃~+70℃ |
| 1.77'' | 128*160 | 28.03*35.04 | 250cd/m2 | 8bit MCU | -20℃~+70℃ |
| 2'' | 176*220 | 31.68*39.60 | 250cd/m2 | 8/16bit MCU | -20℃~+70℃ |
| 2.2'' | 240*320 | 33.84*45.12 | 350cd/m2 | 8/16bit MCU | -20℃~+70℃ |
| 2.4'' | 240*320 | 36.72*48.96 | 250cd/m2 | 4 wire SPI | -20℃~+70℃ |
| 2.8'' | 240*320 | 43.20*57.60 | 300cd/m2 | MCU/RGB/SPI | -20℃~+70℃ |
| 3.2'' | 240*320 | 48.60*64.80 | 300cd/m2 | MCU/RGB/SPI | -20℃~+70℃ |
| 3.5'' | 320*240 | 70.08*52.56 | 250cd/m2 | 24bit RGB | -20℃~+70℃ |
| 3.5'' | 320*480 | 48.96*73.44 | 280cd/m2 | MCU/RGB/SPI 50PIN | -20℃~+70℃ |
| 3.5'' | 800*600 | 71.28*53.46 | 250cd/m2 | 24bit RGB 50PIN | -20℃~+70℃ |
| 5'' | 480*272 | 110.88*62.83 | 400cd/m2 | 24bit RGB 50PIN | -20℃~+70℃ |
| 5'' | 640*480 | 101.57*76.18 | 500cd/m2 | 24bit RGB 50PIN | -20℃~+70℃ |
| 5'' | 800*480 | 108.00*64.80 | 500cd/m2 | 24bit RGB 50PIN | -20℃~+70℃ |
| 5.6'' | 640*480 | 112.896*84.672 | 800cd/m2 | 24bit RGB 50PIN | -20℃~+70℃ |
| 5.7'' | 640*480 | 115.20X86.40 | 700cd/m2 | 24bit RGB 50PIN | -20℃~+70℃ |
| 7'' | 800*480 | 154.08*85.92 | 400cd/m2 | 24bit RGB | -20℃~+70℃ |
| 7'' | 1024*600 | 154.21*85.92 | 600cd/m2 | 8bit LVDS | -20℃~+70℃ |
| 8'' | 800*600 | 162.00*121.50 | 500cd/m2 | 24bit RGB | -20℃~+70℃ |
| 9'' | 800*480 | 198.00*111.70 | 950cd/m2 | 24bit RGB | -20℃~+70℃ |
| 10.1'' | 1024*600 | 222.72*125.28 | 380cd/m2 | 8bit LVDS 24bit RGB | -20℃~+70℃ |
-

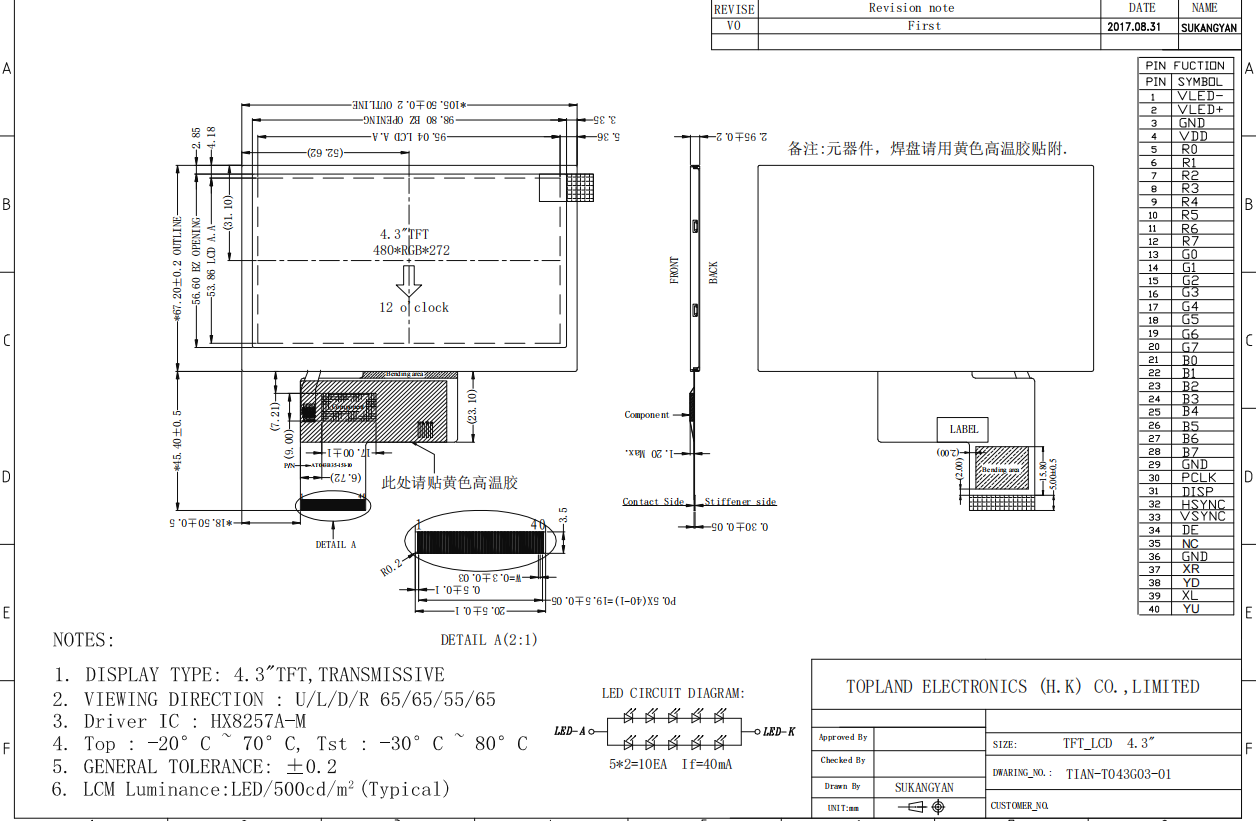

TOPLAND 4.3inch TN specification
