description
| Size | 5'' |
| Resolution | 800x480 |
A.A.(mm)W*H | 108.00*64.80 |
Luminance(cd/m2) | 450cd/m2 |
| Interface | RGB |
Operating Temperature(°C) | -20℃~+70℃ |
Other size we have
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size | Resolution | A.A.(mm) W*H | Luminance (cd/m2) | Interface | Operating Temperature(°C) |
| 2'' | 320*240 | 40.80*30.60 | 350cd/m2 | MCU/RGB/SPI | -20℃~+70℃ |
| 2'' | 240*320 | 30.60*40.80 | 250cd/m2 | MCU/RGB/SPI | -20℃~+70℃ |
| 2.1'' | 480*480 | 53.28*53.28 | 250cd/m2 | 18bit RGB | -20℃~+70℃ |
| 2.4'' | 240*320 | 36.72*48.96 | 250cd/m2 | MCU/RGB/SPI | -20℃~+70℃ |
| 2.7'' | 320*320 | 48.96*48.96 | 250cd/m2 | 16bit RGB | -20℃~+70℃ |
| 2.8'' | 240*320 | 43.20*57.60 | 500cd/m2 | MCU/RGB/SPI | -20℃~+70℃ |
| 3.5'' | 320*480 | 48.96*73.44 | 300cd/m2 | MCU/RGB/SPI | -20℃~+70℃ |
| 3.5'' | 640*480 | 70.08*52.56 | 500cd/m2 | 3 wire SPI+24bit RGB | -20℃~+70℃ |
| 3.5'' | 320*240 | 70.08*52.56 | 300cd/m2 | 24bit RGB 54PIN | -20℃~+70℃ |
| 3.97'' | 480*800 | 51.84*86.40 | 300cd/m2 | 18bit RGB 39PIN | -20℃~+70℃ |
| 4'' | 480*480 | 71.86*70.18 | 400cd/m2 | 18bit RGB | -20℃~+70℃ |
| 4.3'' | 800*480 | 95.04*53.86 | 500cd/m2 | 24bit RGB | -20℃~+70℃ |
4.3'' | 480*272 | 95.04*53.86 | 450cd/m2 | 24bit RGB 40PIN | -20℃~+70℃ |
| 5'' | 800*480 | 108.00*64.80 | 1200cd/m2 | LVDS | -20℃~+70℃ |
| 5.5'' | 1080*1980 | 68.04*120.96 | 800cd/m2 | MIPI 31PIN | -20℃~+70℃ |
| 7'' | 1024*600 | 154.21*85.92 | 400cd/m2 | 4 LANE MIPI | -20℃~+70℃ |
| 8'' | 1024*768 | 154.08*85.92 | 350cd/m2 | LVDS 40PIN | -20℃~+70℃ |
| 8'' | 800*1280 | 107.64*172.22 | 420cd/m2 | 4 LANE MIPI 40PIN | -20℃~+70℃ |
| 10.1'' | 1280*800 | 216.96*135.60 | 280cd/m2 | LVDS 40PIN | -20℃~+70℃ |
| 10.1'' | 1024*600 | 222.72*125.28 | 500cd/m2 | LVDS 40PIN | -20℃~+70℃ |
| 10.1'' | 800*1280 | 135.36*216.58 | 720cd/m2 | MIPI | -20℃~+70℃ |
-

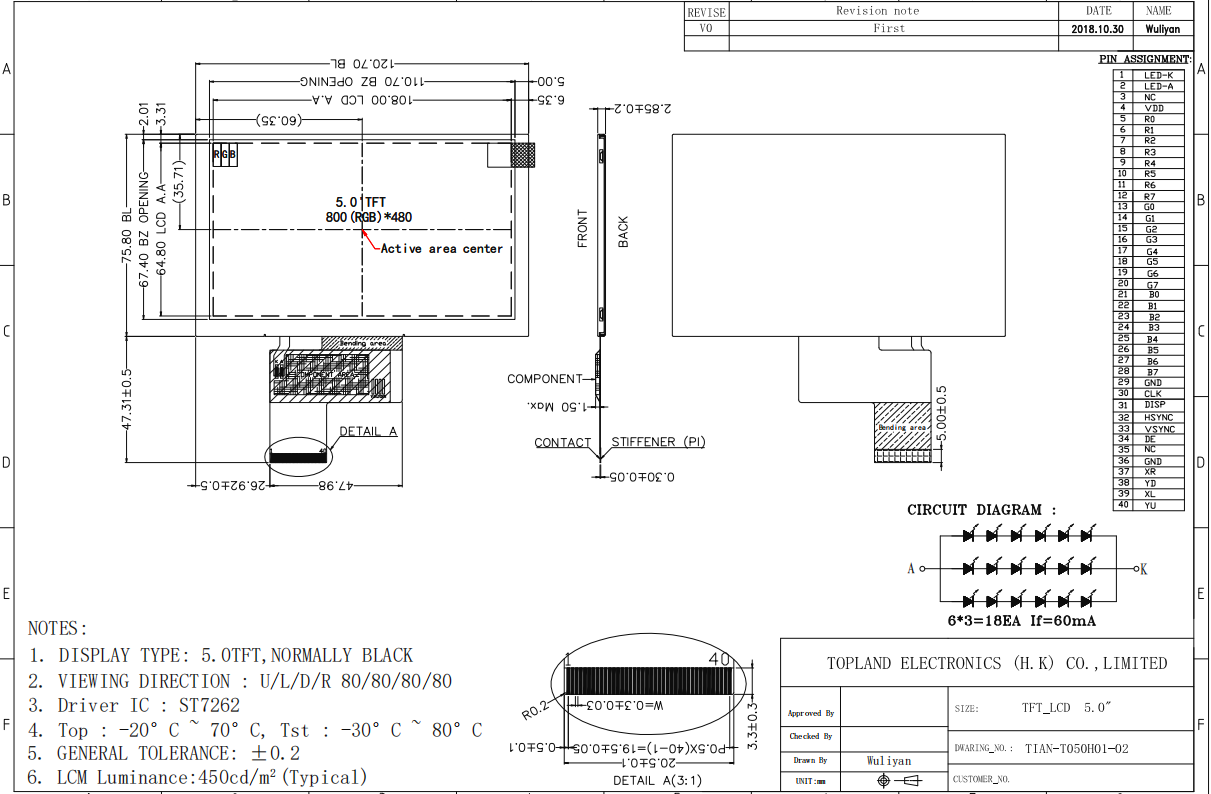

TOPLAND 5 inch IPS specification
