| Size | 21" |
| External Size | 495x291.6 |
A.A.(mm)W*H | 478.64x270.11 |
Transmittance | ≥76% |
| Surface hardness | 5H |
Operating Force | 50-120g |
Operating Temperature | -10℃^50℃ |
Structure | F+G |
Service Life | 1,000,000 times |
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size | External Size | A.A.(mm) W*H | Transmittance | Surface hardness | Operating Force | Operating Temperature | Structure | Service Life |
| 2.4‘’ | 42.72x59.86 | 38.12x50.36 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G（glossy surface) | 1,000,000 times |
| 3.5‘’ | 75.5x72.5 | 63x63 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G | 1,000,000 times |
| 4.3‘’ | 104.7x64.9 | 97x55.5 | ＞82% | 3H | 50-120g | -10℃^60℃ | F+G | 1,000,000 times |
5'' | 120.2x75.2 | 111.1x67.91 | ≥76% | 3H | ≤100g | -20℃^70℃ | F+G（matt surface) | 1,000,000 times |
| 7‘’ | 164.8x99.6 | 151.61x84.7 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G（matt surface) | 1,000,000 times |
| 8‘’ | 182.5x141 | 161.5x120 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G（matt surface) | 1,000,000 times |
| 10.1'' | 235x143 | 225.72x128.28 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G（matt surface) | 1,000,000 times |
| 12'' | 261.4x198.8 | 250.9x190.8 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G（matt surface) | 1,000,000 times |
| 15'' | 328x252 | 309x233 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G（matt surface) | 1,000,000 times |
| 21'' | 495x291.6 | 478.64x270.11 | ≥76% | 3H | 50-120g | -10℃^50℃ | F+G | 1,000,000 times |
| 10.4"’ | 225.4x174 | 213x160.2 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G（matt surface) | 1,000,000 times |
| 15.6" | 363.8x215.9 | 346.83x196.14 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G | 1,000,000 times |
| 17" | 356.5x290 | 338.5x271.4 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G | 1,000,000 times |
-

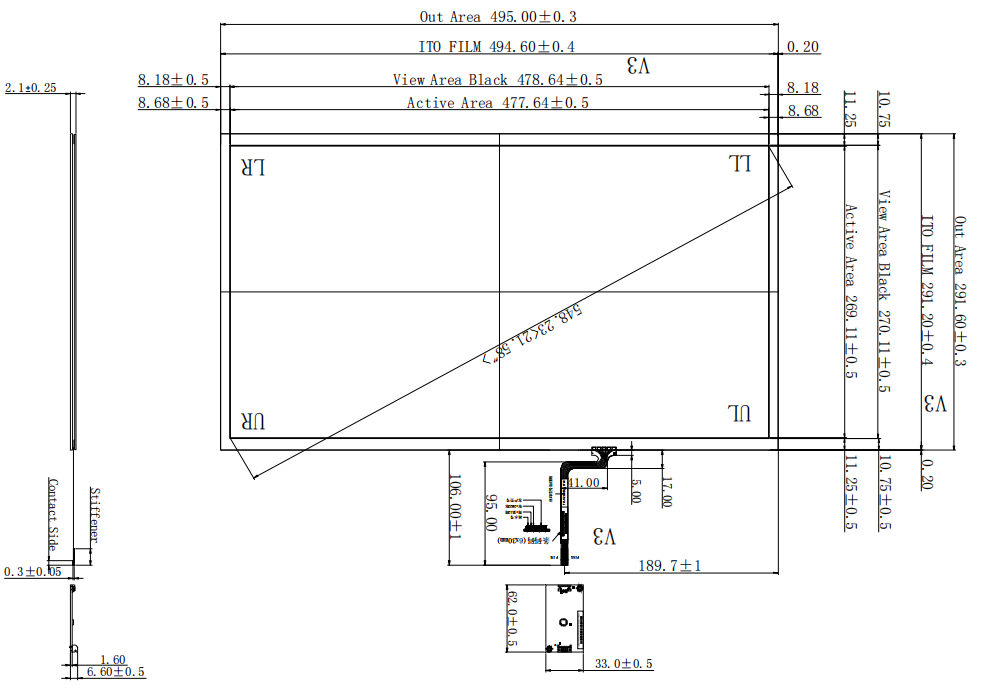

Five Wire TIAN-210003-01_ Specification
