description
| Size | 7'' |
| Resolution | 800*480 |
A.A.(mm)W*H | 154.08*85.92 |
Luminance(cd/m2) | 450cd/m2 |
| Interface | RGB888 50PIN |
Operating Temperature(°C) | -30℃~+85℃ |
Other size we have
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size | Resolution | A.A.(mm) W*H | Luminance (cd/m2) | Interface | Operating Temperature(°C) |
| 1.4 | 160*128 | 25.25*25.25 | 150cd/m2 | 8bit MCU 20PIN | -30℃~+85℃ |
| 2.8 | 240*320 | 43.20*57.60 | 280cd/m2 | MCU/RGB/SPI | -30℃~+85℃ |
| 3.5 | 320*240 | 53.28*71.04 | 650cd/m2 | MCU/RGB/SPI | -30℃~+85℃ |
| 4.3 | 480*272 | 95.04*53.86 | 1000cd/m2 | RGB888 40PIN | -30℃~+85℃ |
| 4.3 | 800*480 | 95.04*53.86 | 500cd/m2 | RGB888 40PIN | -30℃~+85℃ |
| 5 | 800*480 | 108.00*64.80 | 1200cd/m2 | LVDS | -30℃~+80℃ |
-

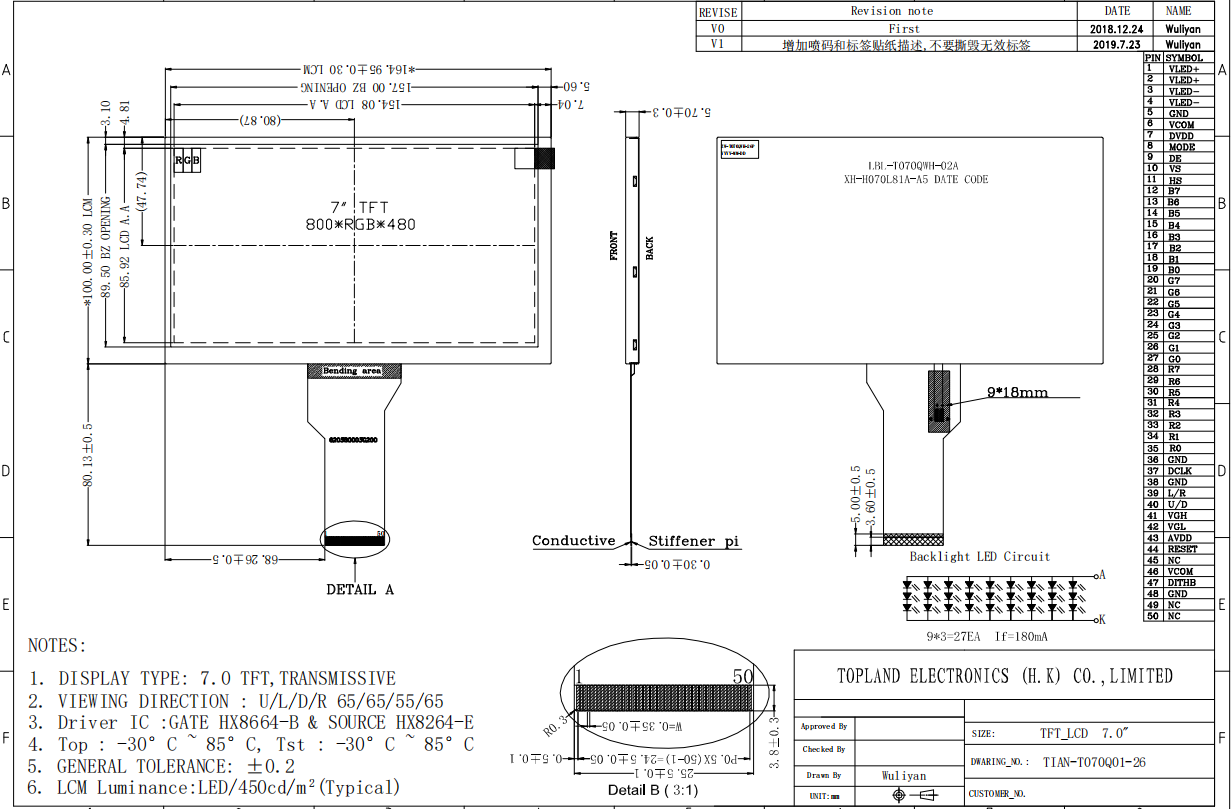

TOPAND 7 inch wide temperature LCD module specification
