description

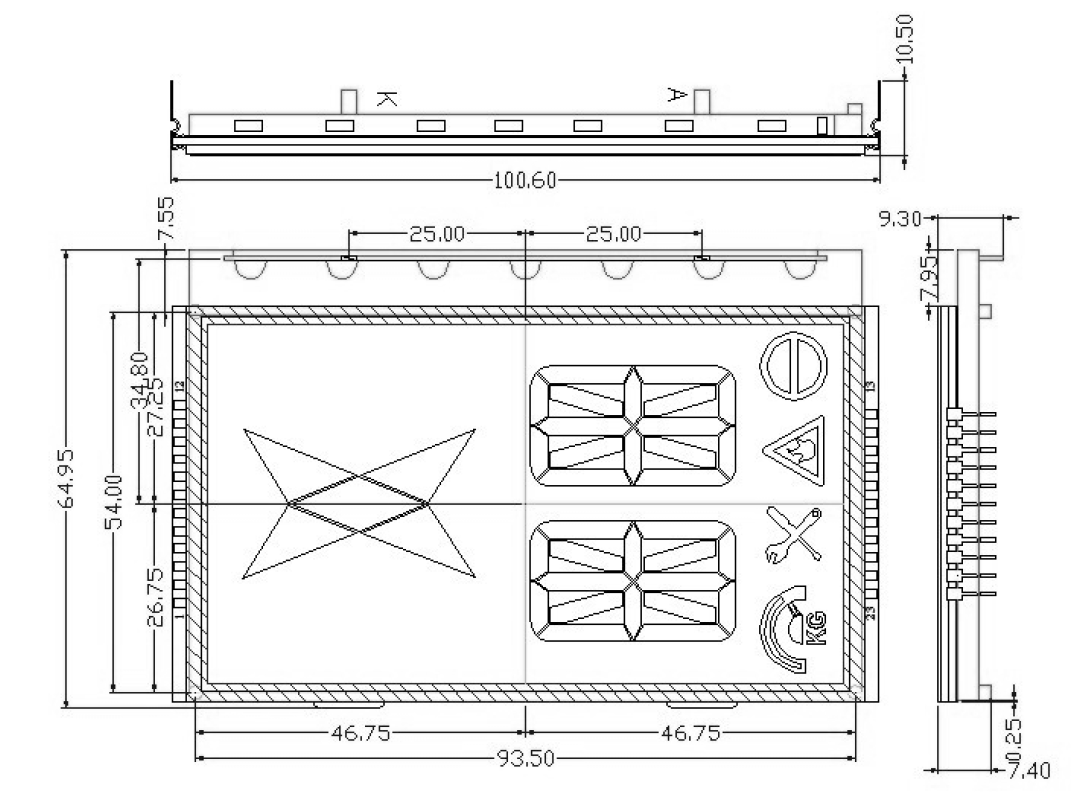

| External Size | 100.60x64.95x10.5 |
| A.A.(mm)W*H | 90x51 |
Matrix Number | 2x21 |
Viewing Angle | 12:00:00 |
| Interface | PIN |
Driving Voltage | 5V |
Operating Temperature | -20℃^70℃ |
Storage Temperature | -30℃^80℃ |
Other size we have
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| External Size | V.A.(mm)W*H | A.A.(mm) W*H | Dot Size | Matrix Number | Controller |
| 84.0*44.0*13.0 | 60.0*18.0 | 48.75*14.35 | 0.35*0.40 | 122*32 | SEN1662G |
| 76.4*29.1*10.6 | 54.8*18.27 | 48.75*14.35 | 0.35*0.40 | 122*32 | SEN1662G |
| 77.0*29.0*5.2 | 63*21.3 | 48.76*15.32 | 0.36*0.41 | 122*32 | SEN1662G |
| 84.0*44.0*13.0 | 60.0*18.0 | 48.46*14.68 | 0.35*0.40 | 122*32 | ST7920 |
| 80.6*42.8*12.8 | 60.0*18.0 | 51.16*14.36 | 0.38*0.43 | 128*32 | ST7920 |
| 80.6*35.0*12.8 | 60.0*18.0 | 51.16*14.36 | 0.38*0.43 | 128*32 | ST7920 |
| 72.0*36.0*12.8 | 60.0*18.0 | 51.16*14.36 | 0.38*0.43 | 128*32 | ST7920 |
| 113.0*65.0*13.0 | 73.4*38.8 | 66.52*33.24 | 0.48*0.48 | 128*64 | SEN6400 |
| 93.0*70.0*13.0 | 70.7*38.8 | 66.52*33.24 | 0.48*0.48 | 128*64 | SEN6400 |
| 78.0*70.0*12.5 | 62.0*44.0 | 56.27*38.35 | 0.39*0.55 | 128*64 | SEN6400 |
| 93.0*70.0*13.0 | 72.0*40.0 | 66.52*33.24 | 0.48*0.48 | 128*64 | SEN6400 |
| 54.0*50.0*7.5 | 43.5*29.0 | 40.92*26.92 | 0.28*0.35 | 128*64 | SEN6400 |
| 122.0*32.0*14.0 | 92.0*22.0 | 86.35*17.23 | 0.49*0.49 | 128*64 | ST7920 |
| 122.4*80.0*11.0 | 88*46.56 | 83.16*41.56 | 0.48*0.48 | 128*64 | RA8822 |
| 61.0*67.5*13.0 | 55.0*54.0 | 44.78*44.78 | 0.33*0.33 | 128*64 | ST7541 |
| 130.*65.0*12.5 | 104.0*39.0 | 97.49*32.46 | 0.46*0.46 | 128*64 | SEN6400 |
| 100.*60.0*12 | 84.0*31.0 | 78.68*26.20 | 0.37*0.37 | 128*64 | SEN6400 |
| 180*65*14.5 | 132.0*39.0 | 127.16*33.88 | 0.49*0.49 | Segment type | T6963C |
| 144*104.0*14 | 114*64.0 | 107.95*57.55 | 0.40*0.40 | Segment type | T6963C |
| 147.8*96.0*14.0 | 114*64.0 | 107.95*57.55 | 0.40*0.40 | Segment type | T6963C |
| 160.0*109.0*11 | 122*92 | 115.17*86.37 | 0.33*0.33 | Segment type | RA8835 |
| 139.0*100.0*11 | 103.0*79.0 | 95.97*71.97 | 0.27*0.27 | Segment type | RA8835 |
| 99.5*71.75*8.9 | 83.4*64.2 | 76.785*56.785 | 0.225*0.225 | Segment type | RA8803/06 |
| 81.44*81.44*7.7 | 60*60 | 54.38*54.38 | 0.34*0.34 | Segment type | UC1698 |
| 660.*71.5*7.6 | 60*60 | 54.38*54.38 | 0.34*0.34 | Segment type | UC1698 |
| 93*70*13 | 73*38.8 | 66.52*33.24 | 0.48*0.48 | Segment type | ST7565R |
| 93*70*13 | 73*38.8 | 66.52*33.24 | 0.48*0.48 | Segment type | ST7565R |
| 78*70*12.5 | 62.5*40.5 | 56.94*37.42 | 0.42*0.56 | Segment type | ST7565R |
| 54*55*7.5 | 43.6*28 | 40.94*24.30 | 0.30*0.36 | Segment type | RA8816 |
| 66.0*51.97*9.6 | 63.0*50.0 | 56.27*38.35 | 0.49*0.45 | Segment type | ST7565 |
| 70.6*57.7*7.9 | 65.8*38.2 | 53.36*32.94 | 0.45*0.49 | Segment type | ST7567 |
-
TOPLAND VA module specification
