description
| Size | 3.5'' |
| Resolution | 240*320 |
A.A.(mm)W*H | 53.64*71.52 |
Luminance(cd/m2) | 100cd/m2 |
| Interface | 18BIT RGB/SPI |
Operating Temperature(°C) | -20℃~+70℃ |
Other size we have
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size | Resolution | A.A.(mm) W*H | Luminance (cd/m2) | Interface | Operating Temperature(°C) |
| 1.77 | 160*128 | 35.28*27.712 | 110cd/m2 | MCU 8/16bit 30PIN | -20℃~+70℃ |
| 2 | 320*240 | 40.80*30.60 | 150cd/m2 | RGB/MCU/SPI | -20℃~+70℃ |
| 2.2 | 240*320 | 33.84*45.12 | 90cd/m2 | RGB 18bits/3SPI 39PIN | -20℃~+70℃ |
| 2.4 | 240*320 | 36.72*48.96 | 150cd/m2 | MCU-16bit/40PIN | -20℃~+70℃ |
| 3.5 | 240*320 | 53.64*71.52 | 100cd/m2 | Transflective | -20℃~+70℃ |
-

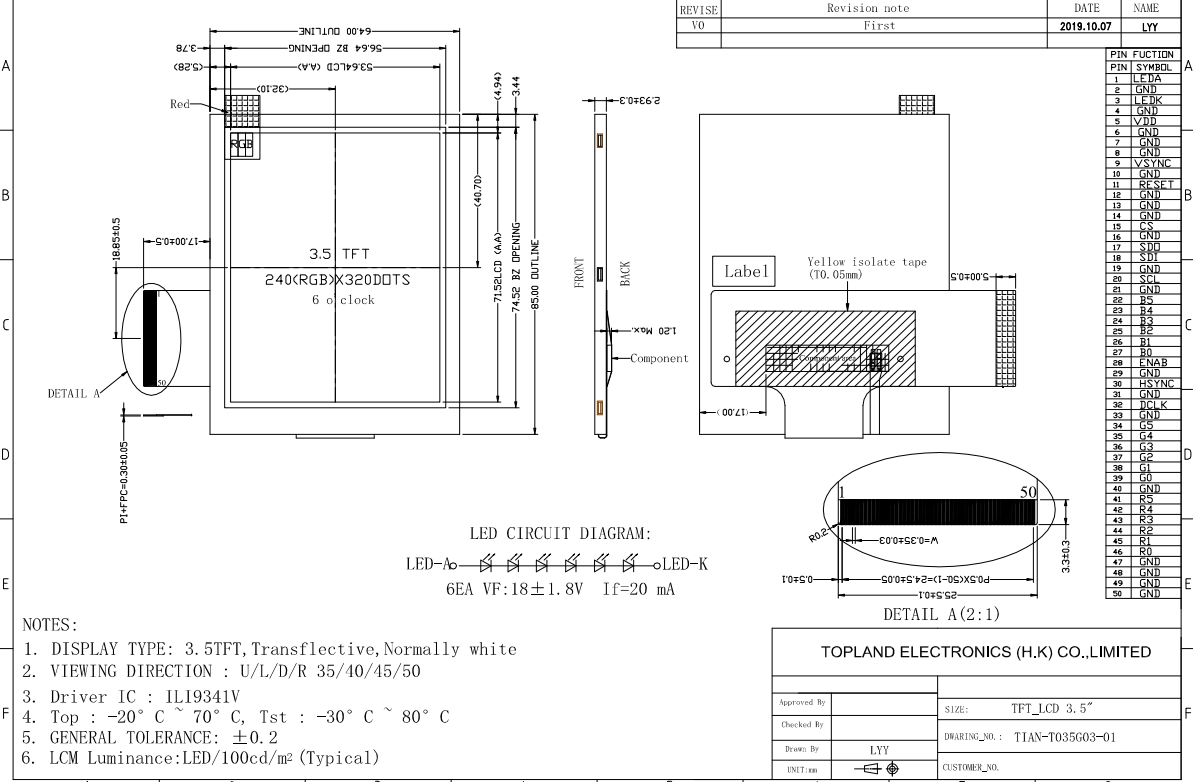

TOPLAND 3.5inch transflective LCD module specification
